ZW125 Intelligent Paper Bowl Forming Machine
The ZW125 Intelligent Paper Bowl Machine is a precision-engineered industrial solution designed for the continuous production of eco-friendly disposable paper bowls. Built for high-volume manufacturing, it supports a wide range of bowl sizes and operates at stable production speeds of 80 to 100 cups per minute, making it an essential solution for modern sustainable packaging lines.
- Production Capacity: 80 – 100 pcs/min (Stable Operation)
- Paper Material: Single / Double PE Coated Paper, PLA, Biodegradable Paper
- Paper Thickness: 150 – 350 gsm (±20 gsm)
Product Overview
The ZW125 Paper Bowl Machine produces bowls up to 125 mm in top diameter, suitable for noodle bowls, yogurt cups, snack bowls, and more. Works with 150 to 300 gsm paper thickness, single or double-coated paper, at a steady speed of 100 pcs/min—a truly efficient tool for your business.
The ZW-125 uses a servo bottom feed for accurate paper placement and less waste. Three-stage hot air system fully heats the cup bottom for a secure seal. The single-disk structure design allows easy mold changes, adapting quickly to different sizes. All-gear and cam drive, together with an automatic mechanical lubrication system, extends machine life and reduces maintenance needs. The whole system is managed by PLC and photoelectric monitoring, keeping track of every process step, stable production.
Xinchen Machinery builds excellence into every machine, helping you produce each bowl quietly and efficiently.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Type | ZW125 Intelligent Paper Bowl Machine |
| Production Capacity | 80-100 pcs/min (Stable Running) |
| Top Diameter Size | 80-125 mm |
| Machine Size | 2300*1300*1900mm (L*W*H) |
| Paper Thickness | 150-300gsm (±20 gsm) |
| Sealing Technology | Ultrasonic System & Hot Air Gun |
| Power Supply | 3Phrase 380V |
| Total Power | 20KW |
| Air Consumption | 0.4m³/min 0.4-0.8mpa |
| Control System | Flexem |
| Lubrication System | Automatic Oil Lubrication |
| Machine Weight | 3000KG |

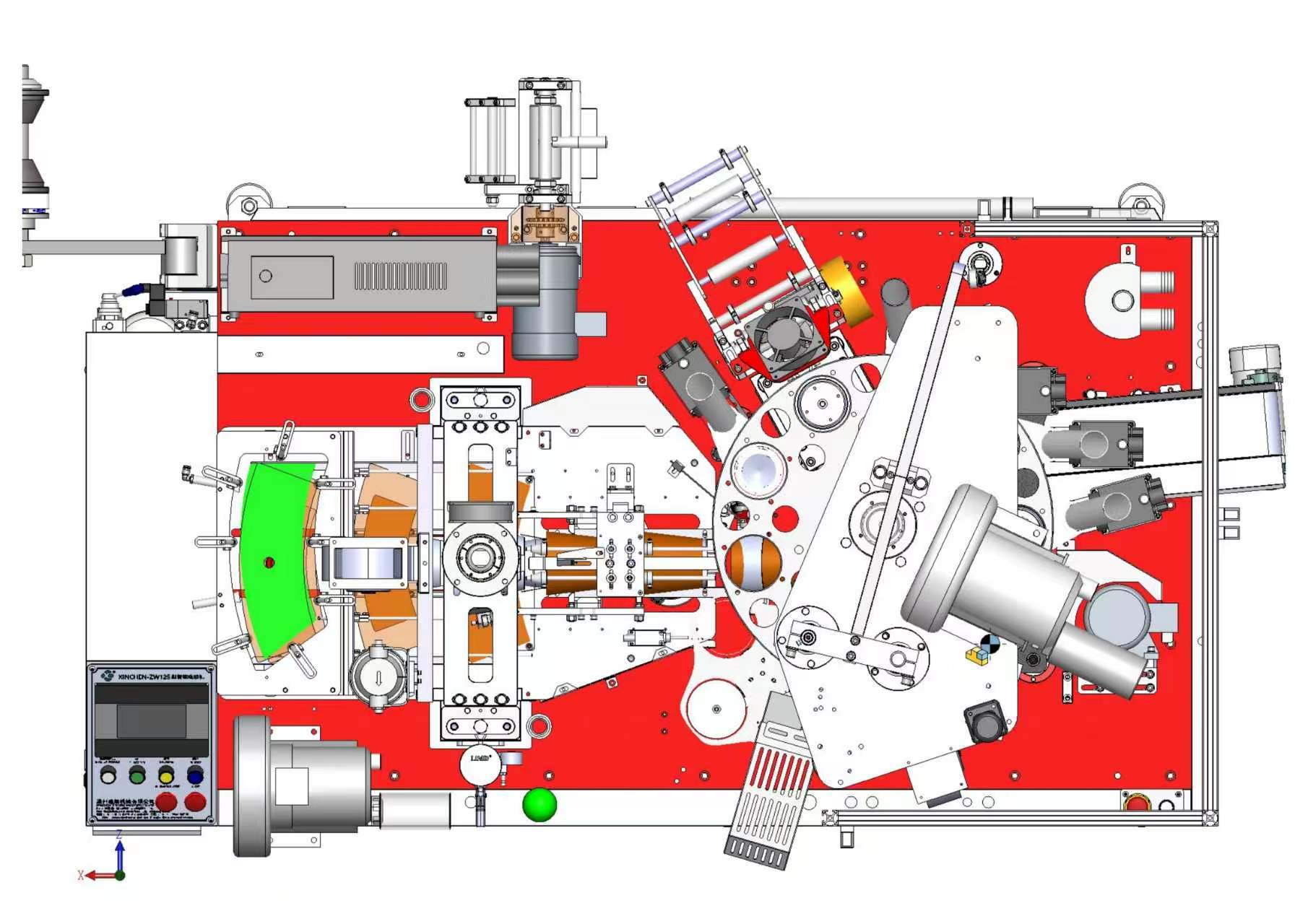

Machine Structure
FAQs
The Ultrasonic Sealing System enables high-speed, glue-free bonding of the cup side seam. Unlike traditional heating rods, ultrasonic technology generates heat only at the point of contact, creating a cleaner, smoother, and more uniform seam.
This method produces a stronger seal, especially for double-PE coated paper, effectively preventing leakage while reducing energy consumption. The result is a more aesthetically pleasing cup body with reliable sealing performance for both hot and cold beverages.
The automatic lubrication system continuously supplies oil to critical moving parts such as gears, cams, and bearings during operation. This significantly reduces mechanical friction and heat buildup, which are the primary causes of wear in high-speed machinery.
By maintaining consistent lubrication, the system ensures smoother machine operation, lower noise levels, improved stability, and a longer service life, while also reducing the need for frequent manual maintenance.
The machine is designed to process a wide range of paper materials, including single-PE coated paper, double-PE coated paper, and environmentally friendly PLA-coated paper.
It supports paper weights ranging from 150 to 350 gsm, allowing manufacturers to produce different cup sizes—from small espresso cups to larger beverage containers. This flexibility makes the machine suitable for both traditional plastic-coated cups and eco-friendly biodegradable cup production.
The PLC (Programmable Logic Controller) with a touch-screen interface acts as the central control unit of the machine. It monitors every production stage in real time, from paper feeding and cup forming to rim curling and cup collection.
If any abnormal condition occurs, such as a paper jam or bottom sealing issue, the system automatically detects the fault and stops the machine to prevent material waste and potential damage. This intelligent control system improves production accuracy, operational efficiency, and ease of use for operators.
The rim curling (rimming) process is controlled through a multi-stage heating and forming system. The top edge of the cup is gradually softened before curling, allowing the machine to form a smooth, round, and reinforced rim.
This process ensures consistent rim quality, which is essential for secure lid fitting and a comfortable drinking experience, meeting the quality standards required by premium paper cup brands and food packaging manufacturers.
